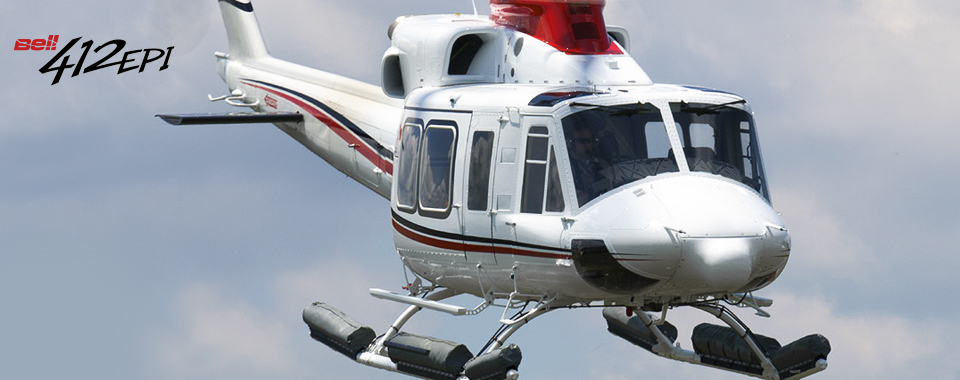

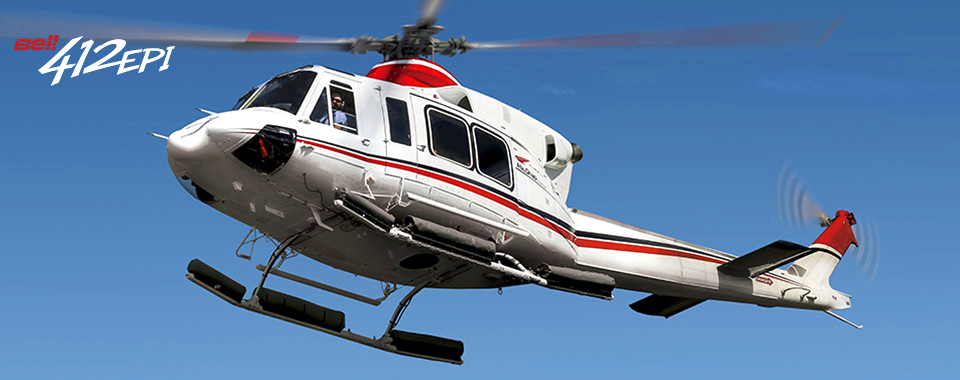

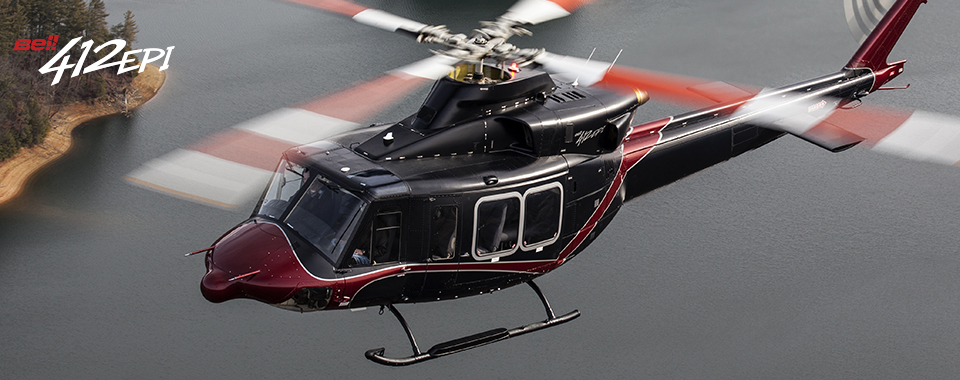

THE BELL 412EPI

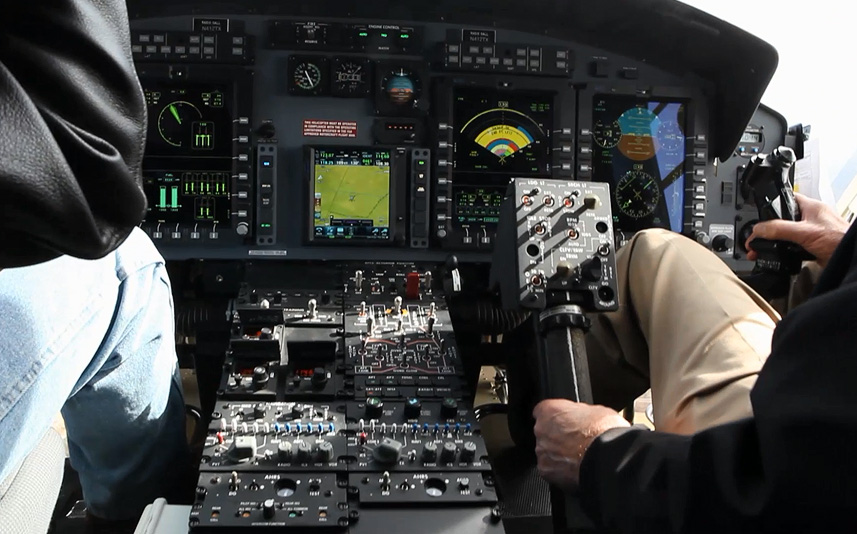

In the new Bell 412EPI, the reliability and versatility of the Bell 412 evolves to the next level. Its Bell BasiX Pro™ Integrated Avionic System provides critical flight information at a glance for greater situation awareness and safety. The Pratt & Whitney PT6T-9 Twin Pac® engines provide enhanced hot-high performance and increased Category A / JAR OPS PC1 Performance.



The 412EPI is certified for single pilot IFR with 3-axis or optional 4-axis stability and control augmentation and a coupled flight director. In addition to offering outstanding product features, the 412EPI is backed by Bell Helicopter's renowned in-service support, voted #1 by our customers twenty years running. If your mission calls for you to go to locations with extreme conditions, the helicopter you should go in is the Bell 412EPI.



  • SPECIFICATIONS

    SPEEDS at max gross wt

    Vne

    Max cruise

    Range at VLRC¹

    Max Endurance¹

    CEILING ALTITUDES

    Service Ceiling (Pressure Altitude)

    Hover Ceiling IGE (Optional Max GW, ISA)

    Hover Ceiling OGE (Optional Max GW, ISA)

    CAPACITIES

    Standard Seating

    Maximum Seating

    Standard Fuel

    Auxilary Fuel (Optional)

    Cabin Volume

    Aft (Baggage) Compartment Volume

    WEIGHTS

    VFR Empty wt

    Std internal gross wt

    External gross wt

    Useful load, standard

    Max ext load (cargo hook limit)

    POWERPLANT (2) Pratt & Whitney PT6T-3D Twin Pac®

    Engine Rating, Take-off

    ¹ Poids brut standard max, ISA, Carburant standard – pas de réserves au niveau de la mer





    259 km/h 140 nœuds

    226 km/h 122 nœuds

    672 km 363 milles marins

    3,8 h



    5 017 m 16 460 pieds

    3 459 m 11 350 pieds

    2 012 m 6 600 pieds



    1 + 14

    1 + 14

    1 251 litres 331 gallons US

    123 ou 617 litres 33 ou 163 gallons US

    6,2 m³ 220 pieds³

    0,8 m³ 28 pieds³



    3 207 kg 7 071 livres

    5 398 kg 11 900 livres

    5 398 kg 11 900 livres

    2 190 kg 4 829 livres

    2 041 kg 4 500 livres



    820 kW 1 110 shp

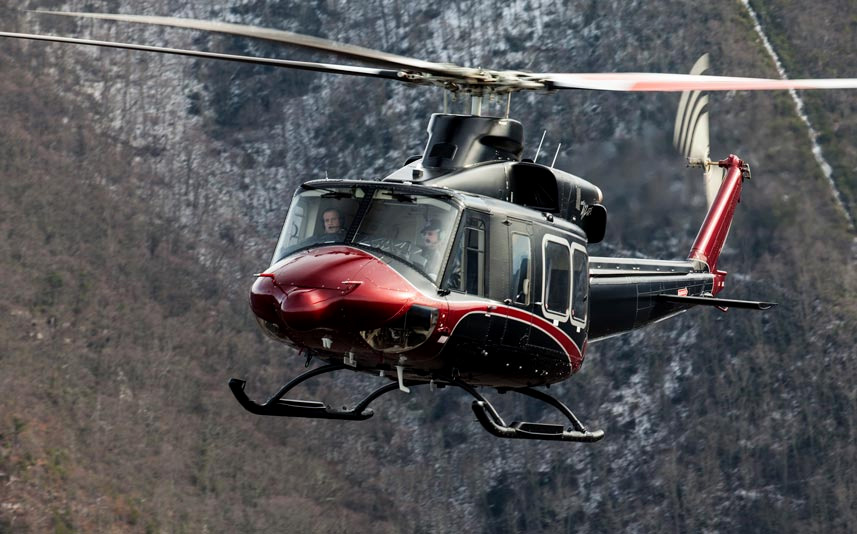

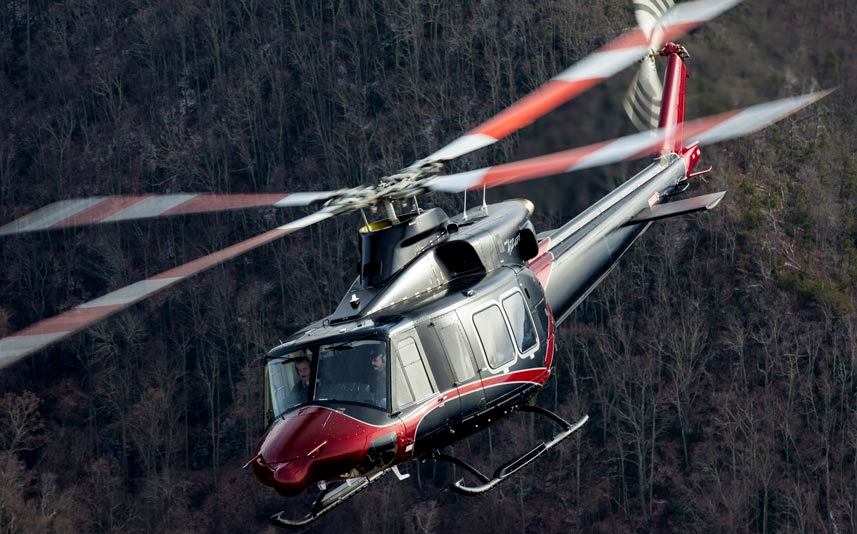

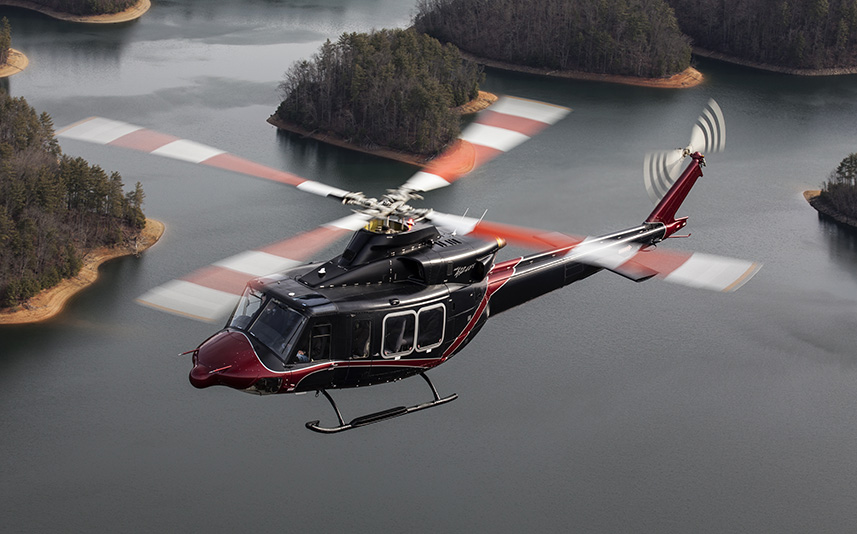

  • PHOTO GALLERY

  • BROCHURE

    Bell 412EPI Data Brochure
