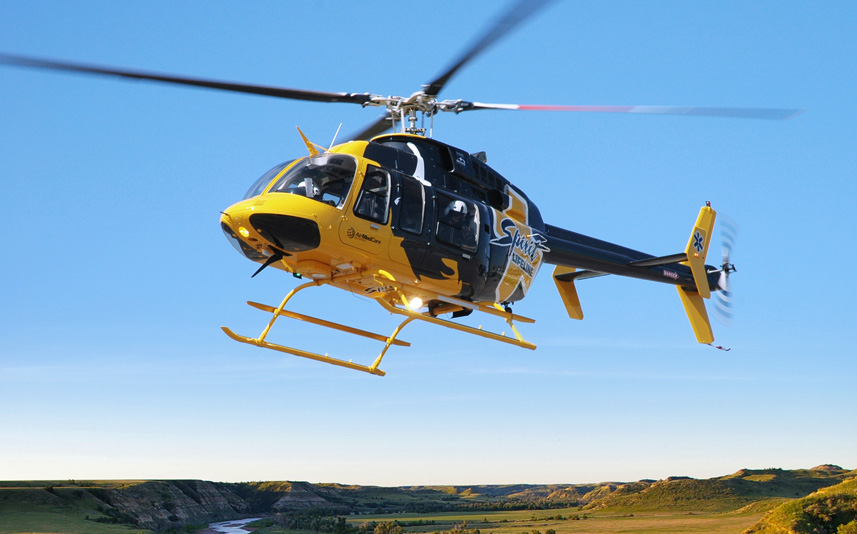

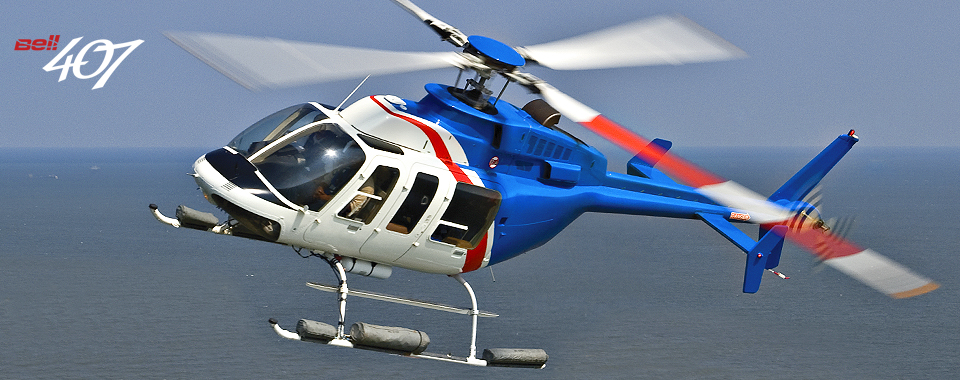

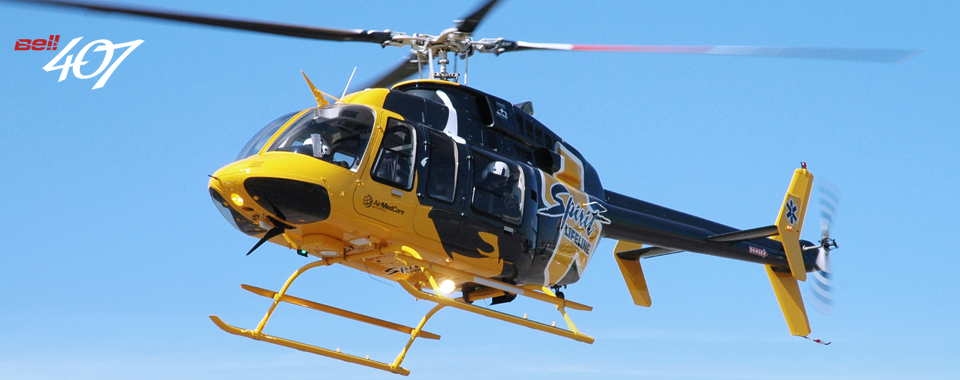

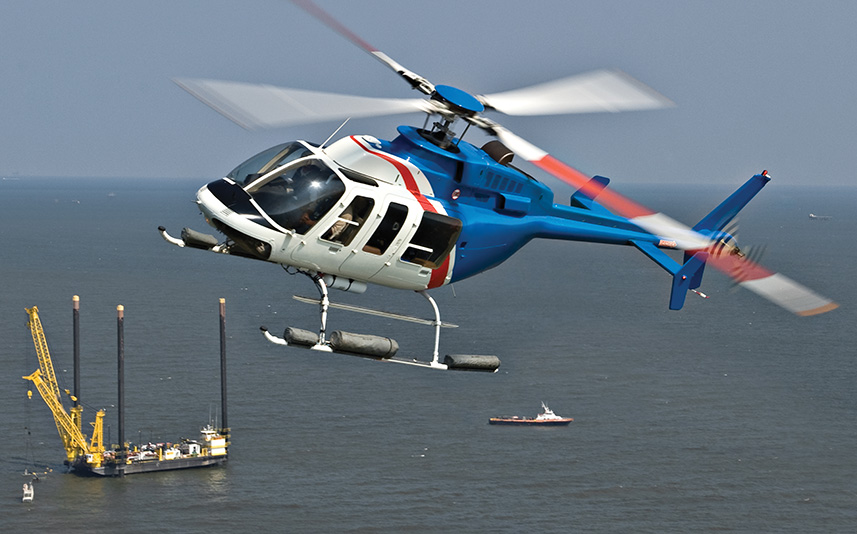

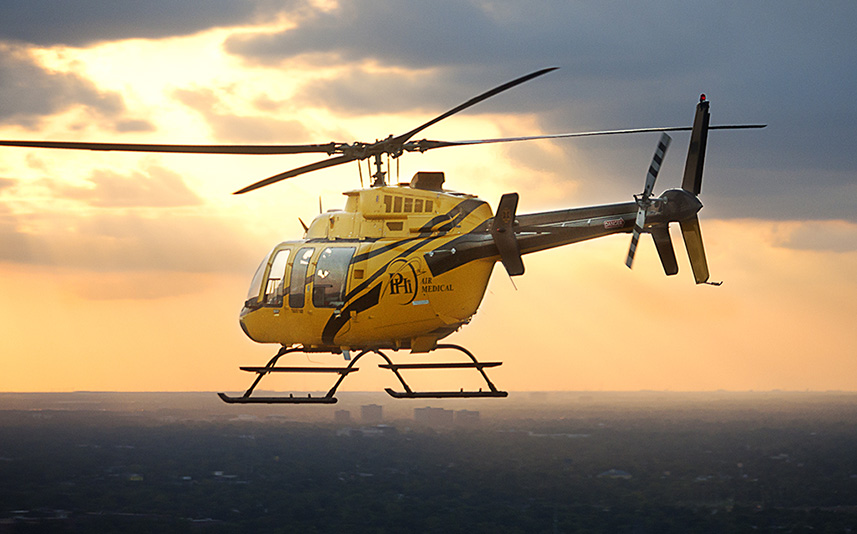

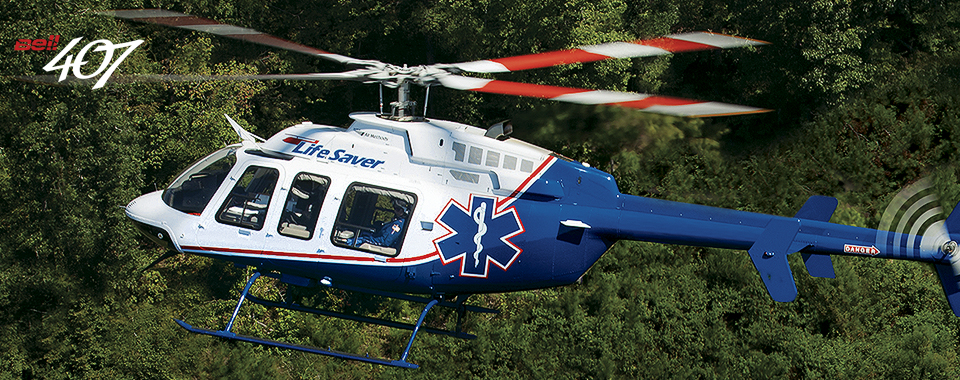

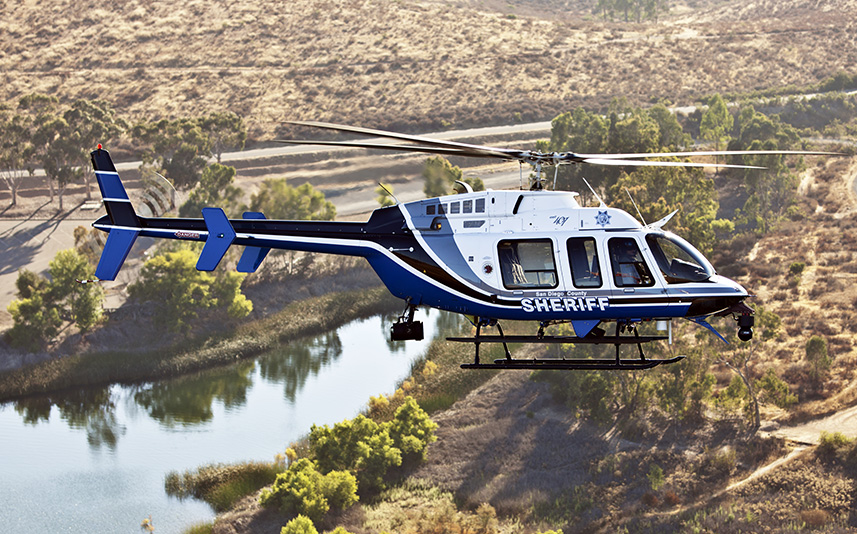

THE BELL 407

The Bell 407 integrates reliability, speed, performance, and maneuverability with a cabin configurable for an array of missions and payloads. Its Rolls Royce 250-C47B turbine FADEC engine delivers exceptional hot & high performance with the ability to cruise at 140 knots (259 km/hr). The 407's spacious cabin seats up to five passengers in wide-open club-passenger seating and can be reconfigured to accommodate any number of tasks and payloads.



For added passenger comfort, the Bell 407 also provides a very quiet and smooth ride in virtually all weather conditions. In addition to offering outstanding product features, the 407 is backed by Bell's renowned in-service support, voted #1 by our customers for twenty years running. The Bell 407 is proof that you don’t have to sacrifice comfort for performance.





  • SPECIFICATIONS

    SPEEDS at max gross wt

    Vne

    Max cruise

    Range at VLRC¹

    Max Endurance¹

    CAPACITIES

    Standard Seating

    Maximum Seating

    Standard Fuel

    Aux Fuel

    Cabin Volume²

    Baggage Compartment Volume

    WEIGHTS

    Empty Weight (Base Aircraft)

    Max Gross Weight (Internal)

    Optional internal gross wt

    External gross wt

    Useful load, standard

    Useful load, optional

    Max ext load (cargo hook limit)

    POWERPLANT Rolls-Royce 250 C47B

    Engine Rating, Take-off





    ¹Std Max GW, ISA, Std fuel - no reserve @ sea level

    ²  Does not include copilot volume of 20ft³ / 0.6m³



    259 km/h 140 nœuds

    246 km/h 133 nœuds

    611 km 330 milles marins

    3,8 h



    1 + 6

    1 + 6

    483 litres 127,8 gallons US

    71,9 litres 19 gallons US

    2,4 m³ 85 pieds³

    0,5 m³ 16 pieds³



    1 214 kg 2 676 livres

    2 268 kg 5 000 livres

    2 381 kg 5 250 livres

    2 722 kg 6 000 livres

    1 054 kg 2 324 livres

    1 167 kg 2 574 livres

    1 200 kg 2 646 livres



    606 kW 813 shp

  • IMAGE GALLERY

  • BROCHURE

    Bell 407 Data Brochure
