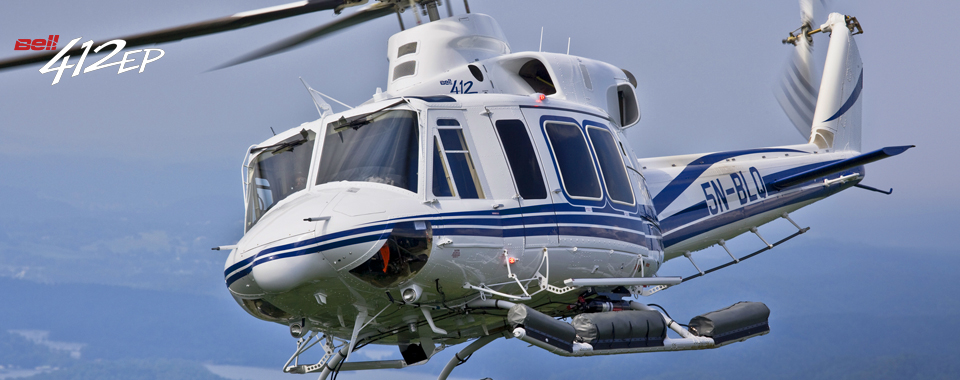

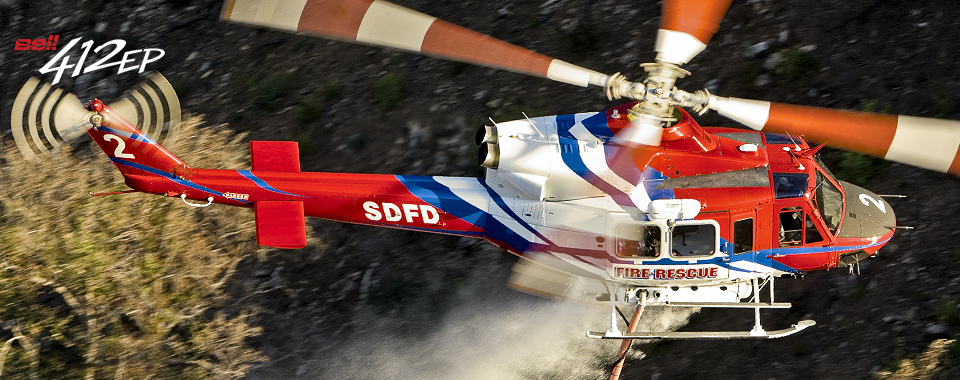

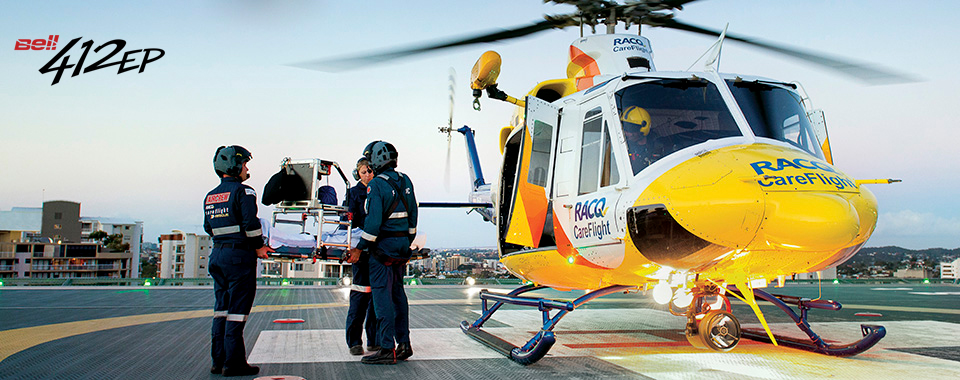

THE BELL 412
The Bell 412 reliably performs in the most extreme climates on the planet every day. Its expansive cabin can be configured to accommodate either cargo or personnel. Its wide opening 7.7 foot doors accommodate forklift loading into a 220 cubic foot cabin. It seats 13 passengers and 2 crew in a cabin adaptable for any mission.
The Bell 412 is certified for single pilot IFR with a dual digital automatic flight control system allowing for automatic approach to hover and automatic hover capabilities. In addition to offering outstanding product features, the Bell 412 is backed by Bell Helicopter's renowned in-service support, voted #1 by our customers twenty years running. If your mission calls for you to go to locations with extreme conditions, the helicopter you should go in is the Bell 412.
SPECIFICATIONS
SPEEDS at max gross wt
Vne
Max cruise
Range at VLRC¹
Max Endurance¹
CEILING ALTITUDES
Service Ceiling (Pressure Altitude)
Hover Ceiling IGE (Optional Max GW, ISA)
Hover Ceiling OGE (Optional Max GW, ISA)
CAPACITIES
Standard Seating
Maximum Seating
Standard Fuel
Auxilary Fuel (Optional)
Cabin Volume²
Aft (Baggage) Compartment Volume
WEIGHTS
VFR Empty wt
Std internal gross wt
External gross wt
Useful load, standard
Max ext load (cargo hook limit)
POWERPLANT (2) Pratt & Whitney PT6T-3D Twin Pac®
Engine Rating, Take-off
¹ Max GW, ISA, Std fuel – no reserves at sea leve
259 km/h 140 nœuds
226 km/h 122 nœuds
663 km 358 milles marins
3,6 h
4 962 m 16 280 pieds
3 109 m 10 200 pieds
1 585 m 5 200 pieds
1 + 14
1 + 14
1 251 litres 331 gallons US
123 ou 617 litres 33 ou 163 gallons US
6,2 m³ 220 pieds³
0,8 m³ 28 pieds³
3 159 kg 6 964 livres
5 398 kg 11 900livres
5 398 kg 11 900 livres
2 239 kg 4 936 livres
2 041 kg 4 500 livres
820 kW 1 110 shp

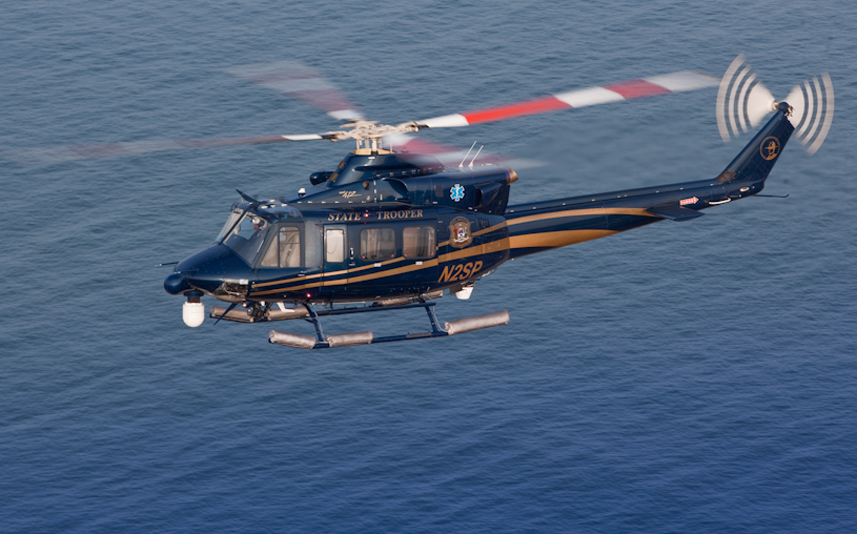

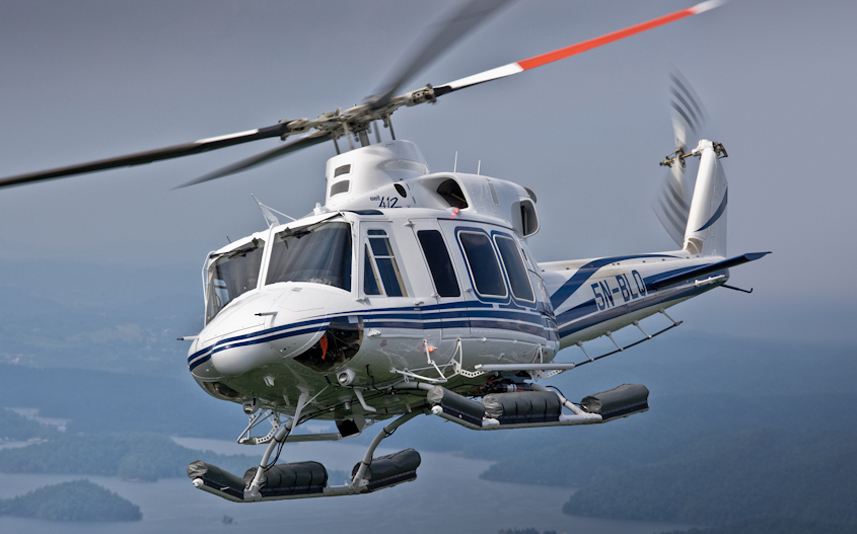

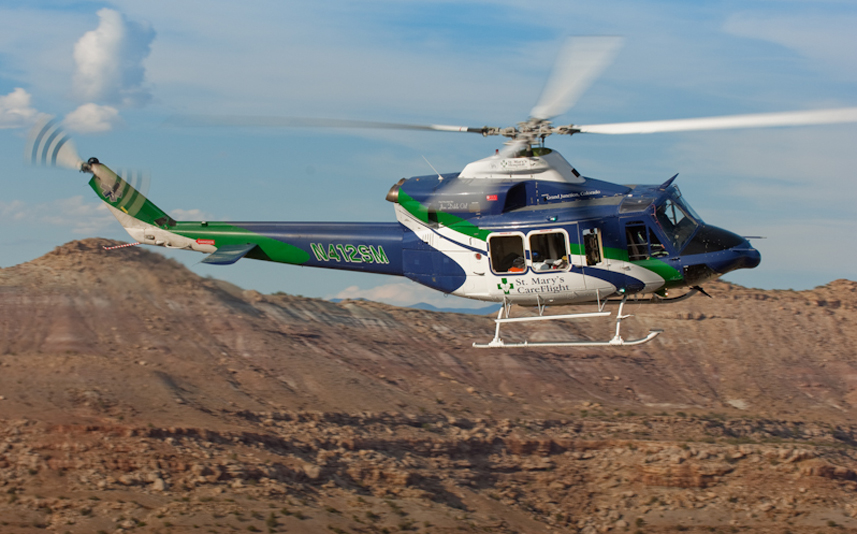

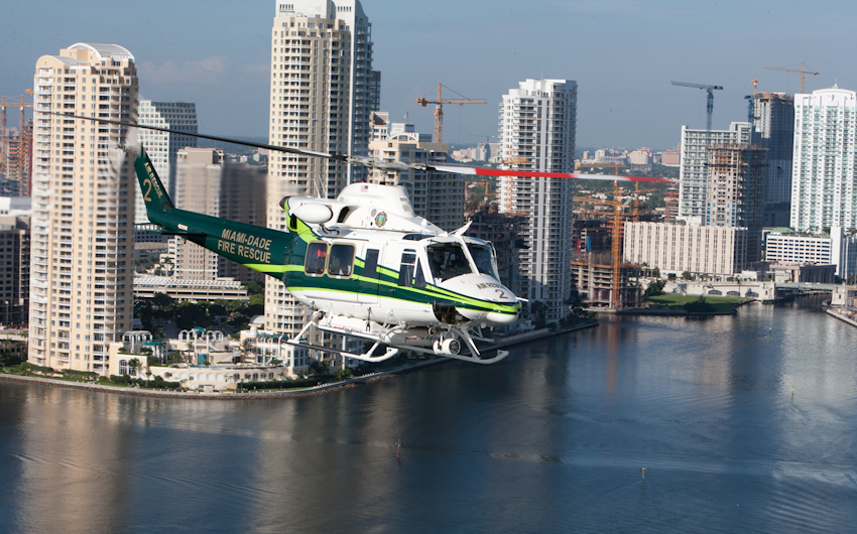

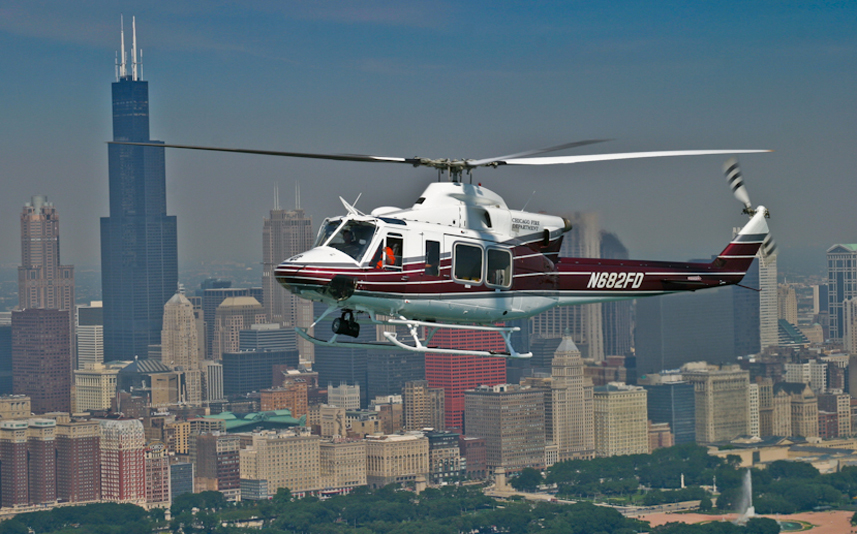

PHOTO GALLERY
<
>
