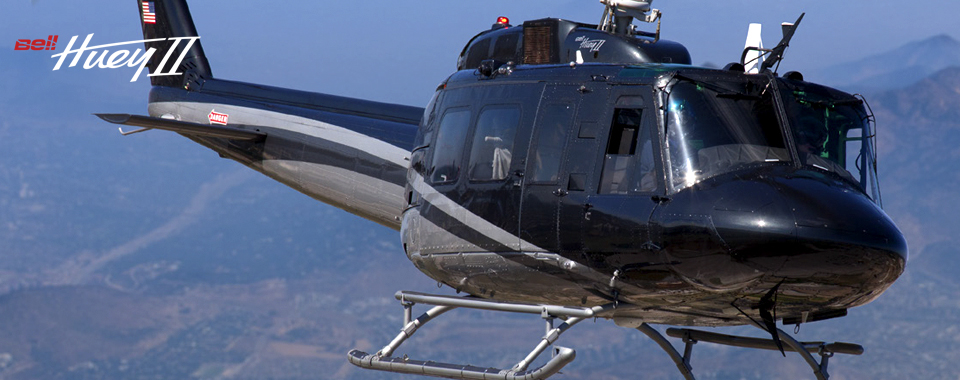

THE BELL Huey II
The Huey II Modernization Program is the only OEM approved UH-1H performance upgrade available today. The Huey II combines all new commercial dynamic components with the reliable Honeywell T53-L-703 engine, leading to an increase in hover performance in hot conditions. In addition, the Huey II upgrade increases the max gross weight to 10,500 lbs, while lowering direct operating costs. With the Huey II kit installation, Bell Helicopter refurbishes the UH-1H basic airframe, provides a complete re-wire package, updates the avionics, and offers a comprehensive selection of mission-specific kits and customizing. So whether your mission is troop transport into high altitudes, medical evacuation in hot conditions, or VIP transport to and from remote bases, choose the Huey II.
SPECIFICATIONS
SPEEDS at max gross wt
Vne
Max cruise
Range at VLRC¹
Max Endurance¹
CEILING ALTITUDES
Service Ceiling (Pressure Altitude)
Hover Ceiling IGE (Optional Max GW, ISA)
Hover Ceiling OGE (Optional Max GW, ISA)
CAPACITIES
Standard seating
Maximum seating
Standard fuel
Auxilary Fuel (Optional)
Cabin Volume
WEIGHTS
Empty Weight (Standard Configuration)
Useful Load (Standard Configuration)
Max Gross Weight (Internal)
Max Gross Weight (External Load)
Cargo Hook Capacity
POWERPLANT (1) Honeywell T53-L-703
Engine Rating, Take-off
¹ / Max GW, ISA, Std fuel – no reserves at sea level
206 km/h 111 nœuds
196 km/h 106 nœuds
455 km 246 milles marins
2,6 h
4 940 m 16 210 pieds
3 839 m 12 595 pieds
1 626 m 5 335 pieds
1 + 12
1 + 14
799 litres 211 gallons US
568 litres 150 gallons US
6,2 m³ 220 pieds³
2 552 kg 5 627 livres
2 210 kg 4 873 livres
4 763 kg 10 500 livres
5 080 kg 11 200 livres
2 268 kg 5 000 livres
1 342 kW 1 800 shp
